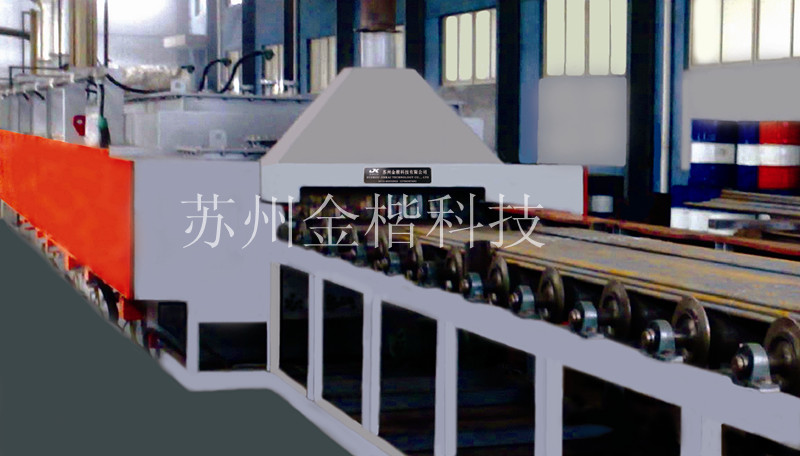

JK906  系列辊底式电阻炉生产线

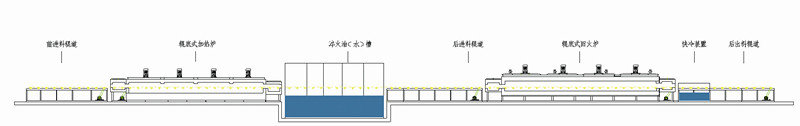

JK906 Series Roller Hearth Resistance Furnace Heat-treatment Line

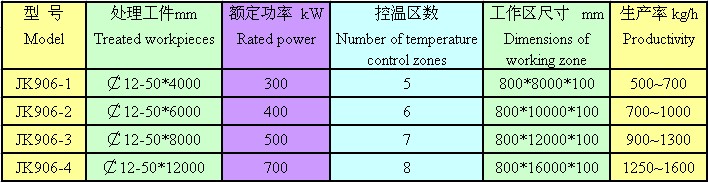

主要规格参数 Main Specifications and Parameters

简介 Brief Introduction
该系列辊底式电阻炉自动生产线是本企业最新研发的调质生产线。
本公司拥有下列专利：
a．发明专利：ZL2009 1 0032141.0《一种热处理工艺及其设备》；
b．实用新型专利：ZL2009 2 0043500.8《一种淬火油槽》。
The line for quenching and tempering is the newest one developed by our Company .

Our Company has following patents:

a．Invention Patent: ZL2009 1 0032141.0《A heat treatment technology and its equipment》;
b．Utility Model Patent: ZL2009 2 0043500.8《A quenching tank》.

用途：主要应用于碳结钢、合金钢的棒材、管材的热处理调质工艺，是合金钢元棒、螺杆生产厂家理想的热处理调质生产线。
Applications: Be mainly applicable to the quenching and tempering of the rods and pipes made of carbon structural steel and alloy steel, and be an ideal line for quenching and tempering to the manufacturers of alloy steel rods and pipes.
